SECS/GEM Solution for 100mm, 150mm & 200mm Wafer Size Equipment’s
EIGEMEquipment is a SEMI standards-compliant SECS/GEM SDK and integration solution that simplifies equipment communication for semiconductor manufacturers. It provides a reliable foundation for implementing SECS/GEM without building communication logic from scratch, ensuring stable host connectivity.
Developed by Einnosys, it supports 100mm, 150mm, and 200mm wafer platforms and is compatible with multiple programming languages and operating systems. The SDK reduces development effort, shortens timelines, lowers costs, and maintains full compliance with SEMI standards, including GEM 200 capabilities.
Customer Value
Time Is Money
EIGEMEquipment reduces software development time by providing ready-made SECS/GEM building blocks. Engineers can focus on device functionality instead of low-level protocol logic, shortening timelines, reducing bugs, and accelerating production readiness.
Efficient
Lightweight and CPU-efficient, it uses minimal system resources while maintaining stable performance on embedded and industrial platforms.
Future-Ready
Includes full SECS/GEM features with expandable GEM 200 capabilities, allowing upgrades without changing core communication logic.
Why Choose EIGEMEquipment SESC/GEM SDK?
Accelerated Time-to-Market
Eliminates months of low-level SECS/GEM development, allowing teams to focus on equipment features and deliver faster while aligning with SEMI standards.
Assured SEMI Compliance
Implements required SEMI behaviours and message patterns with full GEM 200 support, reducing compliance risk and simplifying verification.
Reduced Engineering Cost
Minimises custom protocol coding, lowers debugging effort, and reduces total cost of ownership through reusable SDK components.
Enhanced Interoperability
Minimises custom protocol coding, lowers debugging effort, and reduces total cost of ownership through reusable SDK components.
Proven Industry Expertise
Backed by Einnosys’ semiconductor automation experience, delivering robust SECS/GEM integration with predictable, production-ready performance.
How It Works
Step 1: SDK Integration
Integrate the SECS/GEM SDK into your equipment software using C#, Java, or .NET APIs. The SDK abstracts protocol complexity, enabling communication features through simple function calls and platform-specific libraries.
Step 2: Configuration and Mapping
Configure status variables, alarms, collection events, process programs, and equipment constants. Map internal equipment data to SECS/GEM messages and define host command handlers aligned with your control logic.
Step 3: Host Connection and Communication
Establish HSMS connection with factory host systems. The SDK automatically manages handshaking, message sequencing, timeouts, and error recovery, enabling seamless MES communication.
Step 4: Production Operation
After deployment, the SDK transparently manages host communication, triggers events, handles alarms, executes remote commands, and maintains stable communication even during network disruptions.
Benefits
Accelerated Development
Eliminate 3-6 months of SECS/GEM protocol development effort, allowing teams to focus on equipment functionality and competitive differentiation.
Lower Risk
Proven implementation reduces integration failures, host acceptance issues, and post-deployment communication problems that plague custom developments.
Cost Efficiency
Save $50K-$100K+ in engineering costs per equipment model by leveraging reusable SECS/GEM SDK components and reducing debugging cycles.
Scalability
Single SDK investment supports multiple equipment models, platforms, and generations, maximising ROI across product portfolios.
Expert Support
Access Einnosys integration expertise, avoiding common pitfalls and benefiting from decades of SECS/GEM implementation experience.

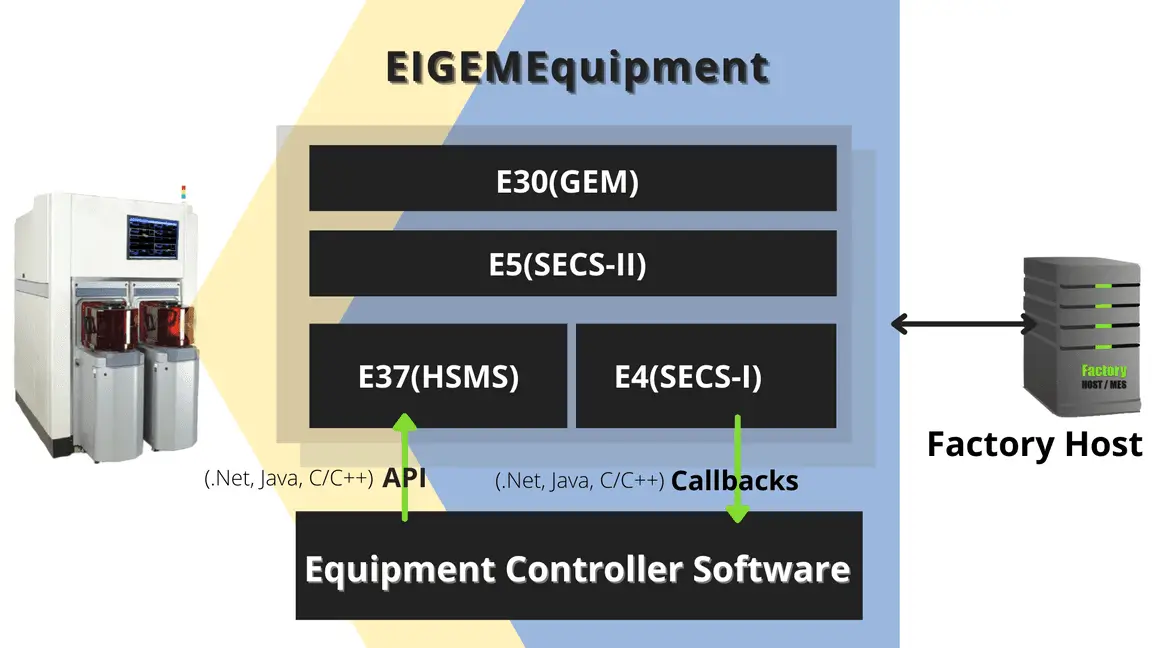

Supported SEMI Standards
SEMI E30 (GEM)
Specification for the Generic Model for Communications and Control of Manufacturing Equipment (GEM). EIGEMEquipment implements GEM behaviours and framework elements described by this specification, enabling structured host-equipment interactions and standardised control semantics required by fabs. Full GEM 200 compliance ensures compatibility with advanced factory automation requirements.
SEMI E4 (SECS-I)
Specification for SEMI Equipment Communications Standard 1 Message Transfer (SECS-I). The SECS/GEM SDK supports the message transfer mechanisms and session-handling approaches defined in this standard, enabling reliable transport when SECS-I is required.
SEMI E5 (SECS-II)
Specification for SEMI Equipment Communications Standard 2 Message Content (SECS-II). EIGEMEquipment manages message content conventions and data encoding outlined in this specification so equipment can exchange structured SECS-II messages with host systems.
Whitepaper
Technical Specifications
| Source Protocol | Conversion Capability |
|---|---|
| Supported Languages | C#, Java, .NET Framework, .NET Core |
| Supported Operating Systems | Windows (7/8/10/11, Server editions), Linux (Ubuntu, CentOS, RedHat), Unix variants, Android |
| SECS/GEM Protocol Support | SEMI E4 (SECS-I), SEMI E5 (SECS-II), SEMI E30 (GEM), SEMI E37 (HSMS), GEM 200 compliant |
| Communication Modes | HSMS Active, HSMS Passive, SECS-I (RS-232) |
| System Requirements | Minimal CPU and memory footprint (typical <50MB RAM, <5% CPU utilisation) |
| Development Tools | Comprehensive API documentation, sample code, configuration tools, debugging utilities |
| Integration Support | Professional services for custom integration, training, validation testing, and ongoing technical support. |
Case Studies
Ready to scale your software development bandwidth?
Contact Einnosys today to discuss your staff augmentation requirements and receive customized staffing solutions tailored to your business needs.
Related Products and Services
Frequently Asked Questions.
What is EIGEMEquipment?
EIGEMEquipment is a software solution that facilitates SECS/GEM communication for semiconductor equipment, ensuring efficient data exchange and control.
How does EIGEMEquipment improve manufacturing processes?
EIGEMEquipment improves processes by enabling real-time monitoring and control, leading to higher efficiency and reduced errors.
Can EIGEMEquipment be used with existing factory systems?
Yes, EIGEMEquipment is designed to integrate seamlessly with existing factory systems and equipment.
What are the main features of EIGEMEquipment?
Features include robust SECS/GEM communication, easy integration, and comprehensive data collection and analysis tools.
How do I get support for EIGEMEquipment?
Support is available through our customer service team, who can assist with installation, configuration, and troubleshooting.
How does SECS/GEM work?
SECS (SEMI Equipment Communication Standard) and GEM (Generic Equipment Model) are communication protocols used to enable automation systems in the semiconductor and related industries. SECS is the physical and data link layer that defines how the equipment communicates with the factory control systems. GEM is a set of standard protocols and models that define how equipment in semiconductor manufacturing should be automated and controlled. Together, SECS/GEM allows for standardized communication between equipment and host systems for process control, data exchange, and reporting.
Who maintains SECS/GEM?
SECS/GEM is maintained by SEMI (Semiconductor Equipment and Materials International), a global industry association that develops standards for the semiconductor industry. SEMI works with industry professionals to ensure that SECS/GEM protocols stay up to date with technology advancements and industry needs.
Where is SECS/GEM used?
SECS/GEM is primarily used in semiconductor manufacturing but is also applicable in other industries such as flat panel display (FPD) manufacturing, photovoltaics, and related automated production environments. It’s used in environments where machines (equipment) need to communicate with host systems for data collection, process control, status reporting, recipe management, and more.
What is SECS GEM Process Program?
The SECS GEM Process Program refers to a software layer or interface that connects the equipment to the host system in a semiconductor or other manufacturing setup. It consists of a set of rules and standards (as part of GEM) that define how the equipment should respond to commands from the host, send data, report status, and manage alarms. The Process Program ensures that the equipment behaves as expected and communicates efficiently with other systems in the production environment.
How to send commands to equipment using SECS/GEM?
Use the GEM interface to issue S2F41 (Remote Command) messages to the equipment. This message includes the command name and parameters required for the equipment to execute the desired operation.
What is HSMS in SECS/GEM?
HSMS (High-Speed SECS Message Services) is a protocol for transmitting SECS messages over TCP/IP networks. It is faster and more efficient than SECS-I, which relies on RS-232 serial communication.
What is an event in SECS/GEM?
An event is a significant occurrence in equipment, such as a process step completion or error detection. It is configured in the GEM interface to trigger event reports, which notify the host system.
What are SECS/GEM message types?
Common message types include:
- S1F1/S1F2: Equipment Status Requests and responses.
- S2F13/S2F14: Data Collection Plan definitions.
- S5F1/S5F2: Alarm reports.
- S2F41/S2F42: Remote Commands and responses.
How to handle multiple equipment with SECS/GEM?
You can manage multiple equipment by:
Ensuring each piece of equipment has a unique ID.
Using a centralized host system capable of handling simultaneous SECS/GEM connections.
Configuring communication channels (e.g., separate TCP/IP ports for HSMS).
How to ensure SECS/GEM compliance?
Follow these steps:
- Use SECS/GEM standards (SEMI E30, E37, E4) during implementation.
- Test using SECS/GEM compliance tools or simulators.
- Verify compatibility with the host system.
What are some SECS/GEM use cases?
- Data Collection: Monitoring production metrics such as temperature or pressure.
- Alarm Handling: Notifying operators of errors or warnings.
- Recipe Management: Uploading or downloading recipes for process control.
- Remote Control: Starting, pausing, or stopping equipment.
How to troubleshoot SECS/GEM connectivity issues?
Steps to troubleshoot:
Check physical connections (cables, ports, network settings).
Verify protocol configurations (RS-232 for SECS-I or TCP/IP for HSMS).
Use SECS/GEM logging tools to analyze errors.
Confirm that both host and equipment are properly configured for communication.
How is SECS/GEM used in automation?
SECS/GEM enables automated manufacturing by:
- Sending commands from the host system to start or stop processes.
- Automatically collecting and analyzing production data.
- Synchronizing equipment operations in a factory.
What are the benefits of SECS/GEM?
Key benefits include:
- Standardized communication across diverse equipment.
- Improved manufacturing efficiency through automation.
- Enhanced monitoring and control for better quality assurance.
- Reduced downtime with real-time error detection.
What is the difference between SECS-I and HSMS?
SECS-I: Uses RS-232 serial communication, slower and suited for legacy systems.
HSMS: Uses TCP/IP over Ethernet, faster and suitable for modern systems with higher data demands.
